Power Entry Modules Multi-Function Inlet Filters
Power input module filters comply with international standards and
include fuses, voltage selectors, switches and filtering options. The selection of a power input module family simplifies the
mechanical design, with an internal filter circuit for efficient
filtering performance. With dozens of different combinations of power input functions,
these modules provide a cost-effective solution to the power input
needs of many systems.
YB11C1-10A-Q is the Power Entry Modules Filter, its components include IEC socket, switch, fuse, filter circuit,
metal shell five parts
Suitable for a variety of power input systems, rated voltage
115V-250V, current optional range: 1A,3A,6A,8A,10A. In addition, we
can also customize the medical specifications (R5) of the filter,
in line with the medical equipment low leakage current standards.
YB11C1 Filter Features:
1. IEC socket mounting from front side
2.(R5) types comply with the requirements of IEC/EN60601-1 for
safety clearance, leakage current and hipot testing
3. There are a variety of parts and combinations to meet different
customer's EMC tests
4. Customized products according to customer's requirements
Typical Applications:
1. Portable electrical and electronic equipment;
2. Medical equipment;
3. Test and measurement equipment;
4. Small and medium-sized machines and household equipment
5. Single-phase power supply,switch-mode power supply
Technical Specification:
| Item | Power Input Module Filter |
| Model | YB11C1-10A-Q |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Frequency Band | 150KHz-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115VAC/250VAC |
| Rated Current | 1A 3A 6A 8A 10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 115VAC/50HZ 0.3uA Max |
| MOQ | 100pcs |
| Price | USD2~6.3/Meter |
| Lead Time | 5~15 weekday |
Naming Rule:
| YB | 11 | C1 | - | 10A | - | Q |
| | | | | | | | | | | | |
| Single Phase | Circuit | Dimension | | Current | | Output Connection |
| | 11:11 circuit | C1: one fuse | | 6A :6 amp | | Q:fast-on tab 250 |
| | | C2: dobule fuse | | 8A :8 amp | | W:wire |
| | | | | 10A :10 amp | | S:Solder Lug Terminals |
*Q: Fast-on 6.35x0.8mm
S: solder 4.0x0.8mm
W: UL1015 18awg
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YB11C1 | C1 | 1 | Fast-on terminal |
| YB11C1 | C1 | 3 |
| YB11C1 | C1 | 6 | Wire |
| YB11C1 | C1 | 8 |
| YB11C1 | C1 | 10 | Solder Lug Terminals |

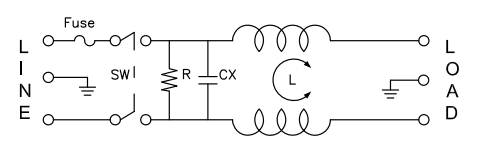

Electrical schematic:

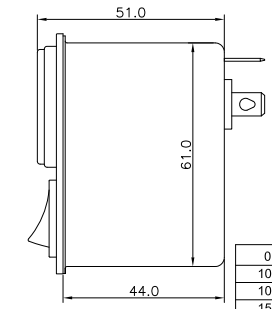

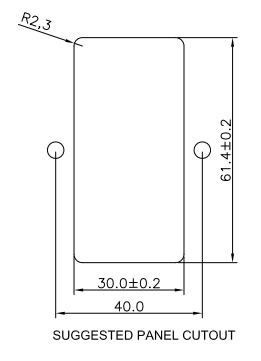

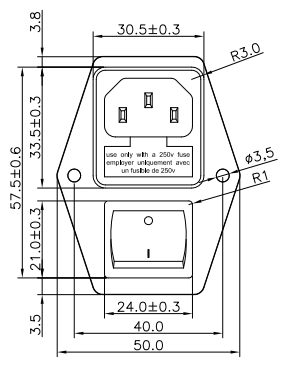

Mechanical Dimension(Unit: mm)
| Case | A | B | C | D | E | F | G | H | I | J | K | L |
|
| C1/C2 | 62 | 61 | 29.5 | 50 | 40 | 65 | 11 | 11 | 17 | 3.5 | 6.3*0.8 | 46.0 |
|
| Tolerances | ±1 | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.5 | ±1 | ±0.15 | ±0.15 |
|

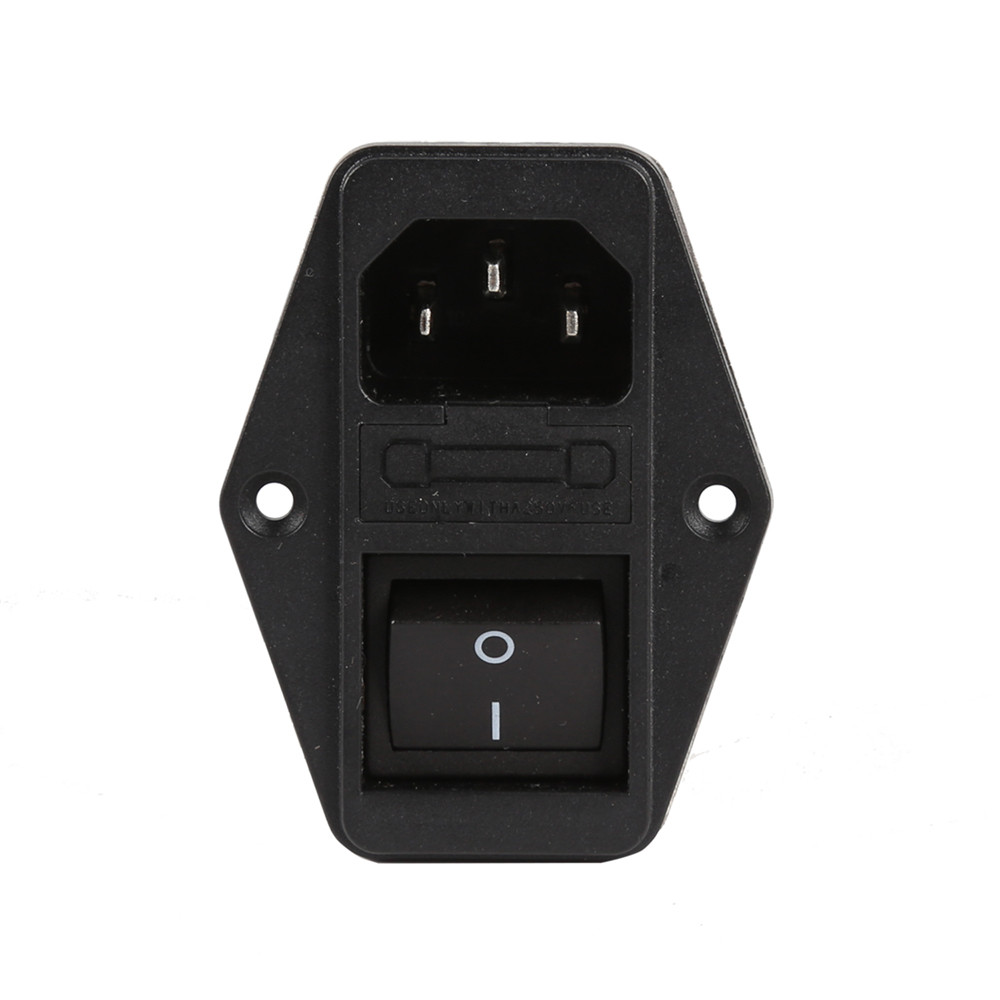

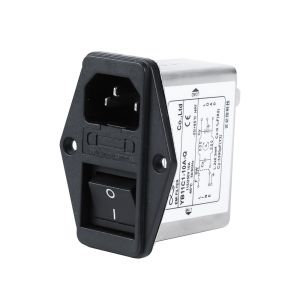

YB11C1-10A-Q Filter Picture:
